Overview

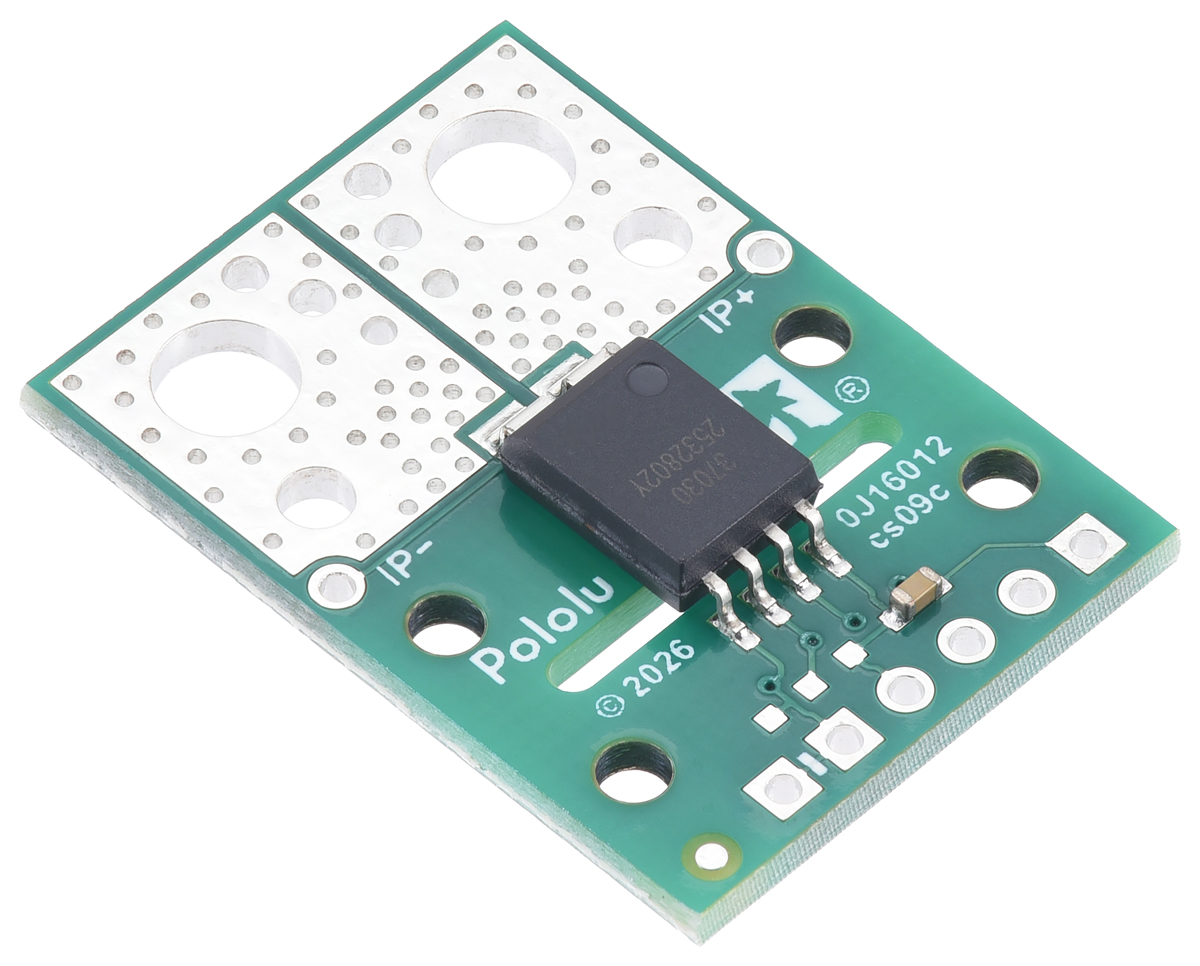

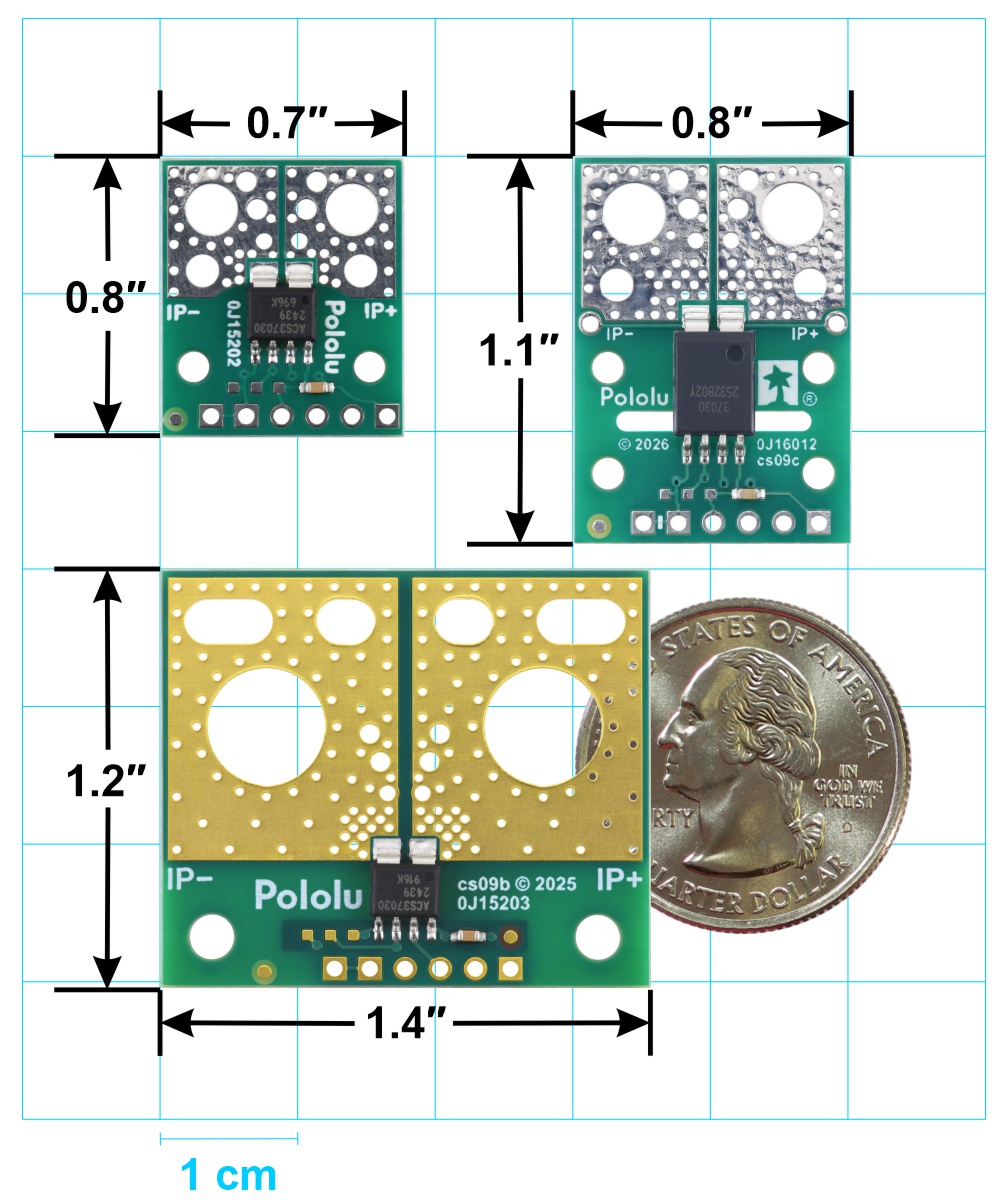

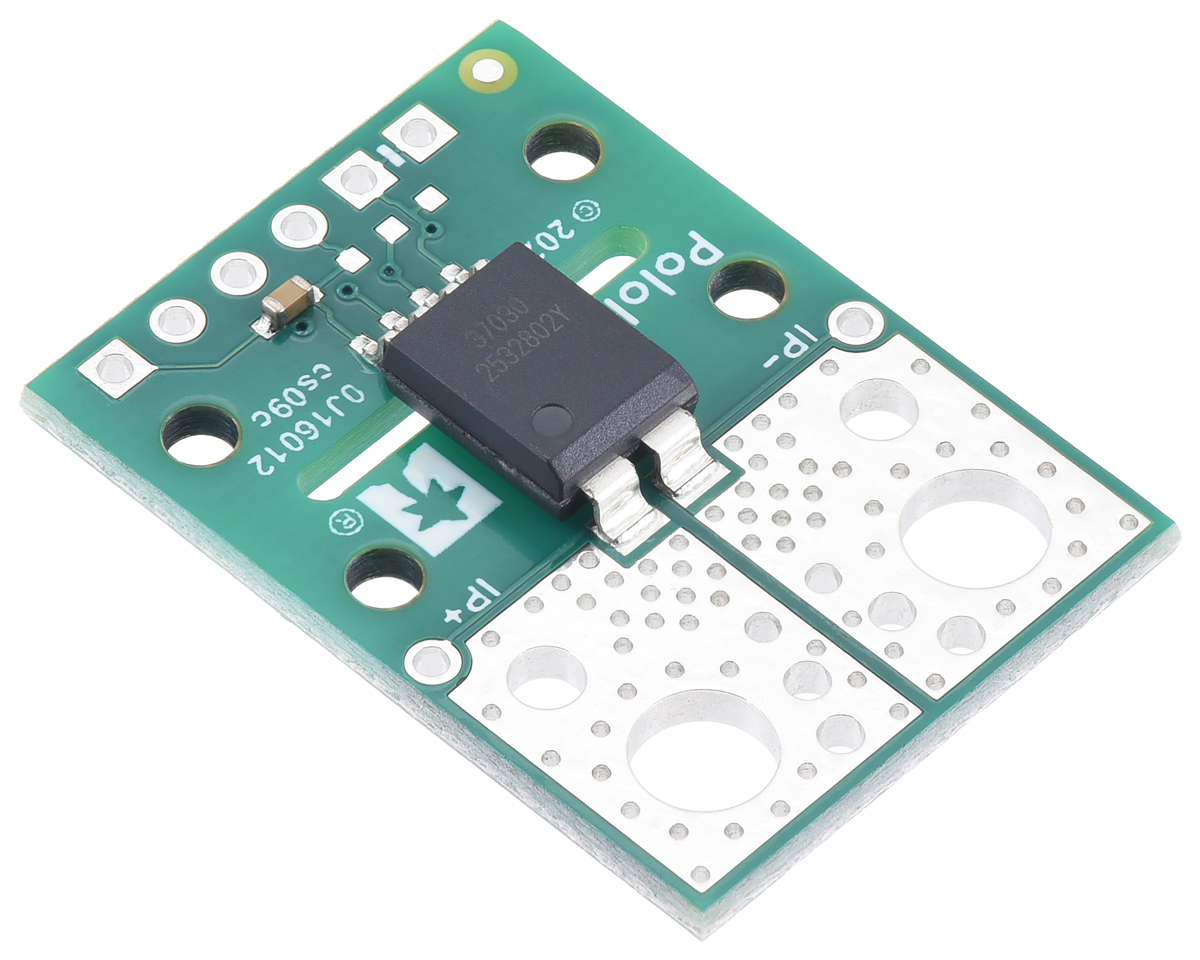

The Pololu ACS37030MY current sensor module is a compact carrier built around the Allegro ACS37030MY for galvanically isolated current measurement. It is designed for a supply voltage of 3.3 V and measures current in the range of -65 A to +65 A. The module provides an analog voltage output proportional to current and supports a bandwidth from DC to 5 MHz, making it suitable for both steady-state current monitoring and fast current transients.

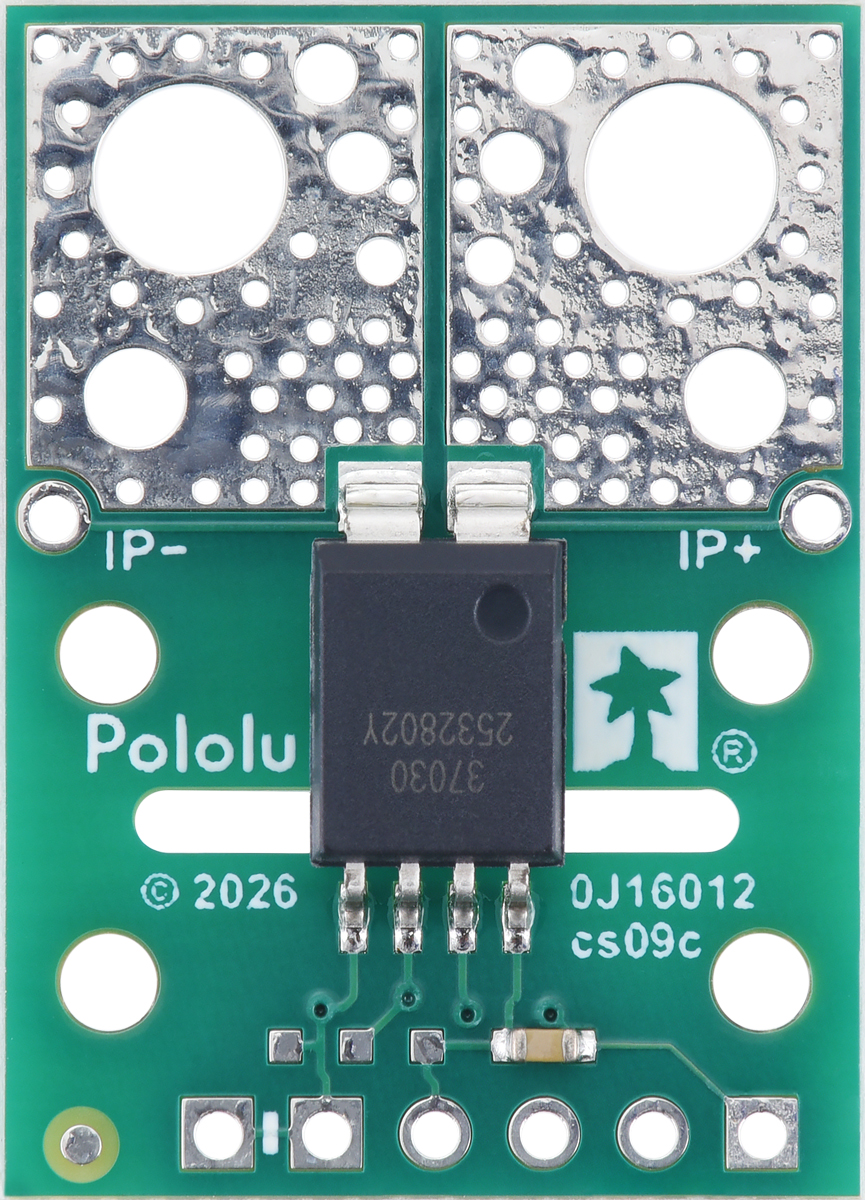

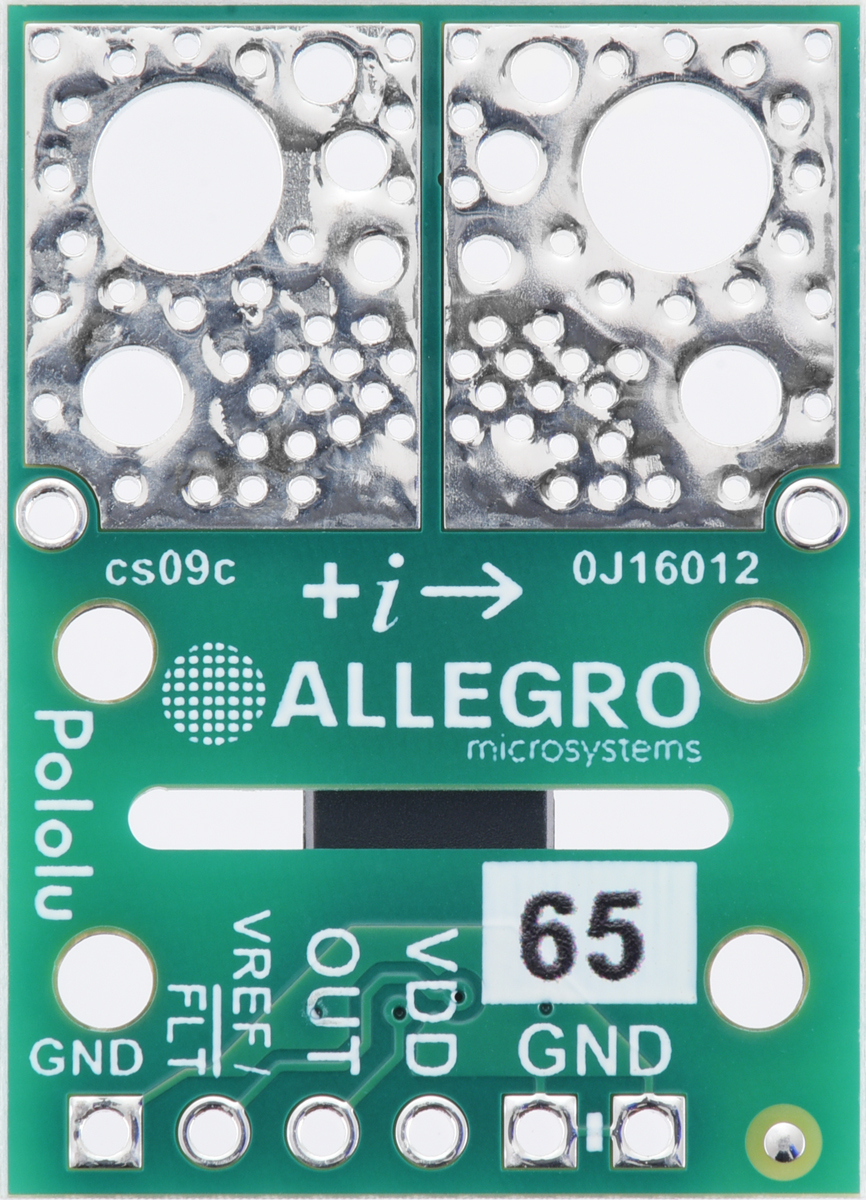

The sensor uses a galvanically isolated primary current path and combines a Hall-effect-based sensing path for DC and low-frequency information with an inductive coil for high-frequency content. Typical response time is 40 ns. The ACS37030MY version offers a higher isolation rating and greater creepage and clearance distance than ACS37030LZ versions, and the carrier PCB includes routed slots to support these benefits. A VREF output is provided for pseudo-differential signaling, and the module includes integrated digital temperature compensation.
Technical Data
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer | Pololu | — |
| MPN | 5696 | — |
| SKU | PO5696 | — |
| Product type | Current sensor module | — |
| Sensor IC | Allegro ACS37030MY | — |
| Measurement range | -65 to +65 | A |
| Supply voltage | 3.3 | V |
| Output signal | Analog voltage output | — |
| Bandwidth | DC to 5 | MHz |
| Typical response time | 40 | ns |
| Operating temperature range | -40 to 150 | °C |
| Current path | Galvanically isolated | — |
| Output type | Non-ratiometric | — |

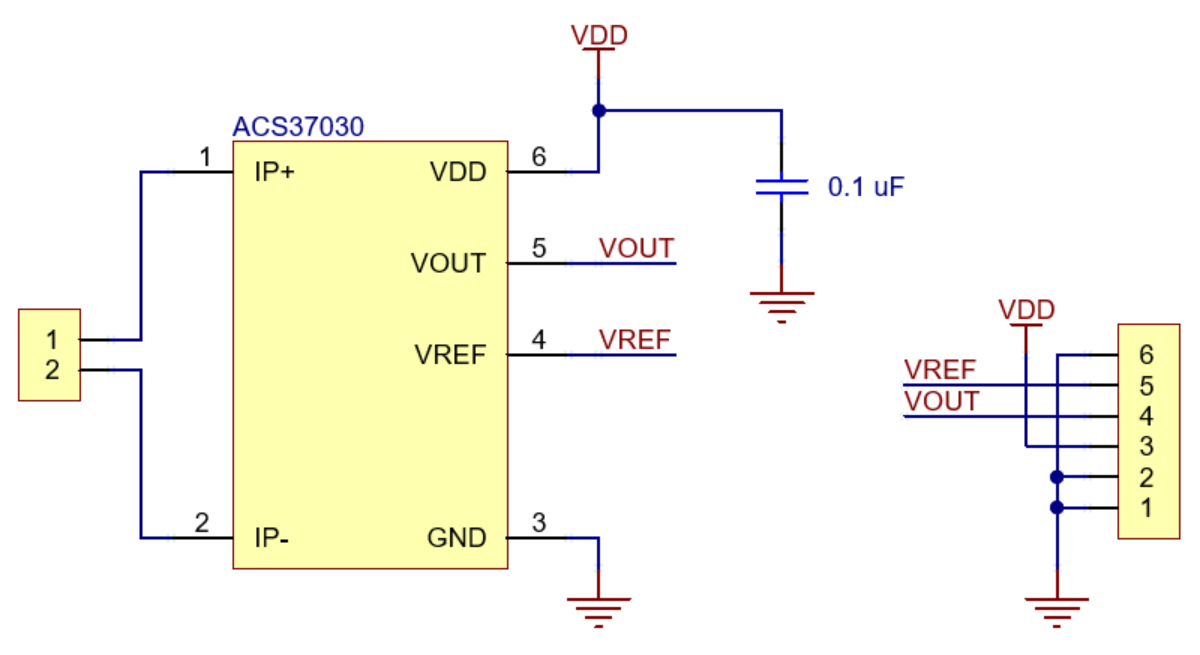

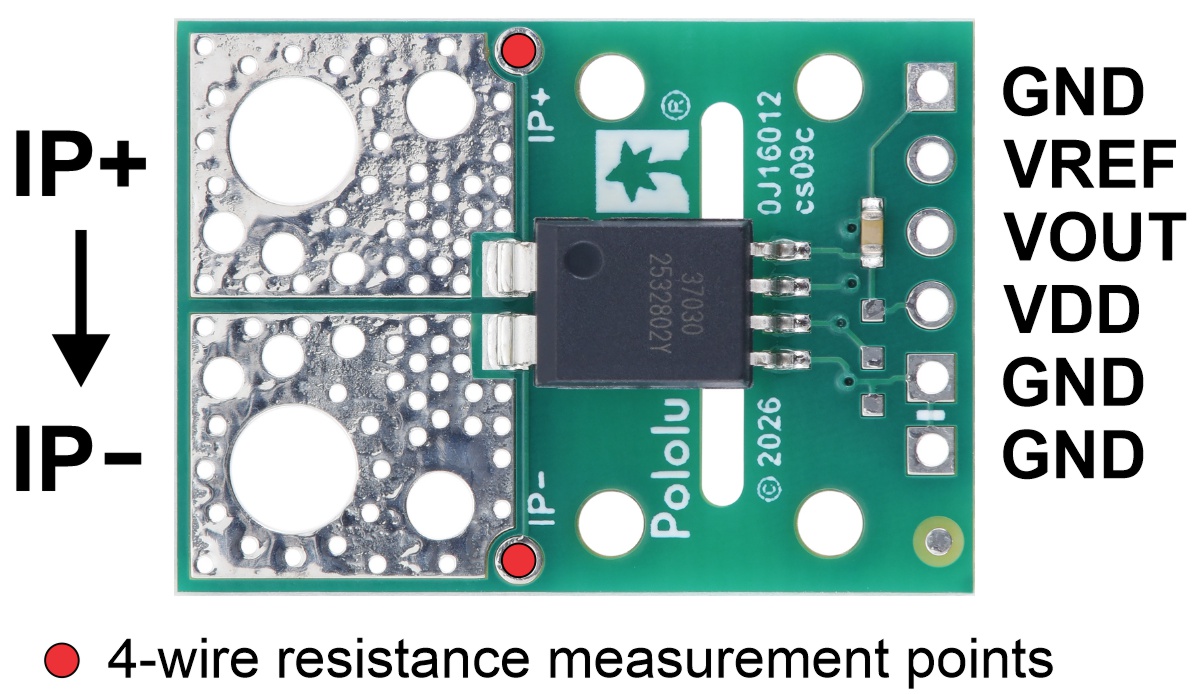

| Reference output | VREF | — |

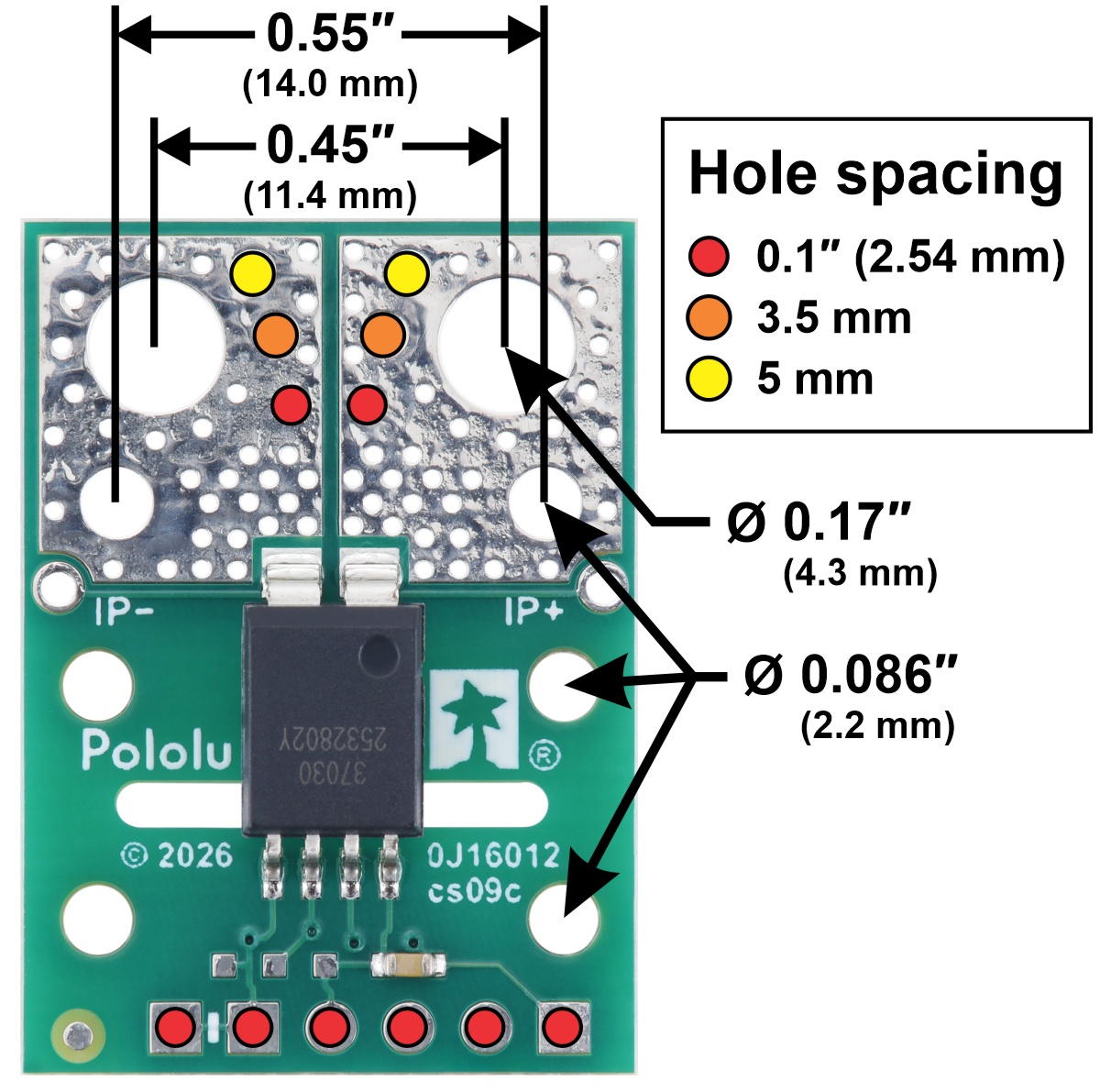

| Pin pitch | 0.1 | inch |
Applications
- Embedded current monitoring
- Power electronics measurements
- Industrial electronics applications
- DC current monitoring
- Observation of fast current changes in switching electronics
Scope of Delivery
- Pololu current sensor module on compact carrier
- Populated with Allegro ACS37030MY current sensor IC
