Overview

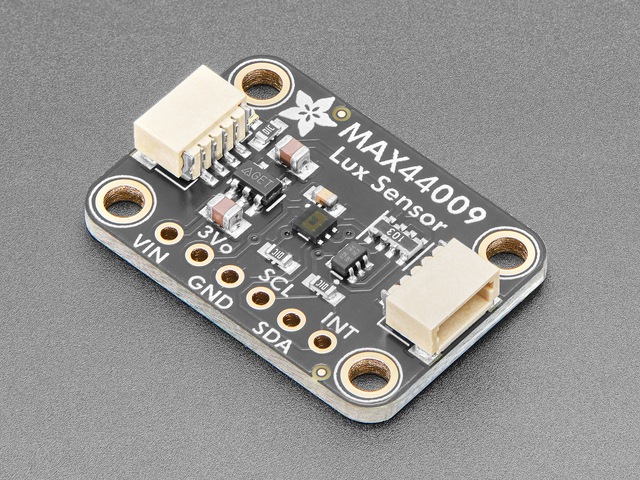

The Adafruit MAX44009 Wide-range Lux Light Sensor is a compact ambient light sensor module based on the MAX44009 controller IC. It is designed for illuminance measurements over a wide range from 0.045 lx to 188000 lx and communicates via an I2C interface. The module is suitable for integration into embedded systems, measurement setups, and automation projects that require digital ambient light sensing.
With a supply voltage range of 1.7 V to 3.6 V, the board is intended for low-voltage designs. It supports the STEMMA QT / Qwiic connector ecosystem, which simplifies integration into compatible prototype and embedded platforms. The module has approximate dimensions of 17.8 x 17.8 mm and is specified for an operating temperature range of -40 °C to 85 °C.
Technical Data
| Parameter | Value | Unit |
|---|---|---|
| Product Type | Ambient light sensor module | |
| Controller IC | MAX44009 | |
| Interface Type | I2C | |
| Connector Ecosystem | STEMMA QT / Qwiic | |
| Supply Voltage Min. | 1.7 | V |
| Supply Voltage Max. | 3.6 | V |
| Current Consumption | 0.001 | mA |
| Operating Temperature Min. | -40.0 | °C |
| Operating Temperature Max. | 85.0 | °C |
| Dimensions (approx.) | 17.8 x 17.8 | mm |
| Illuminance Measurement Range Min. | 0.045 | lx |
| Illuminance Measurement Range Max. | 188000.0 | lx |
| Resolution | 14 | bit |
| Measurement Accuracy | not specified | |
| Sampling Rate | not specified | Hz |
| RoHS Compliant | not specified |
Applications
- Ambient light measurement in embedded systems
- Brightness sensing for control systems
- Automatic display or backlight adjustment
- Light-dependent switching functions
- Measurement and logging setups for illuminance data
Scope of Delivery
- Adafruit MAX44009 ambient light sensor module
